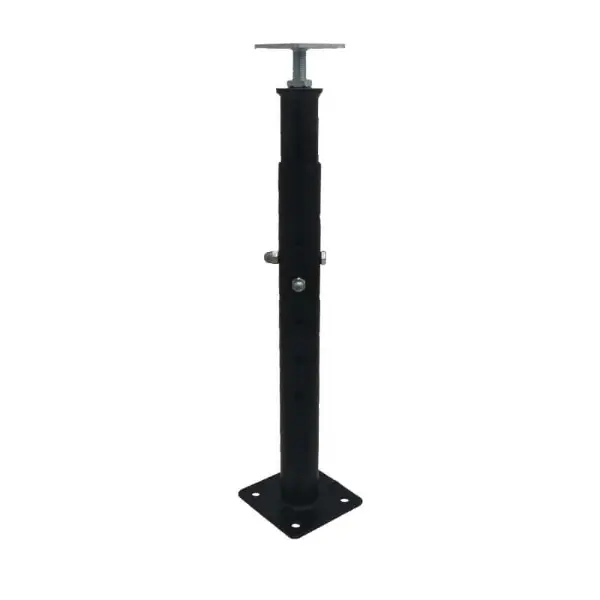

Heavy-duty steel pedestal with a wide height adjustment range, designed to provide robust and reliable raised floor support in data centers, clean rooms, and other high-performance environments.
Description:
The Big Adjustment Range Pedestal offers exceptional strength, flexibility, and precision for raised flooring systems. Constructed from durable steel and coated with a black powder epoxy finish, this pedestal provides long-lasting corrosion resistance and a clean, professional appearance. With an impressive height range of FFH100mm to FFH2000mm, it accommodates diverse installation needs, making it ideal for various elevated flooring applications. Engineered with a thick top plate, reinforced base tube, and adjustable screw rod, it ensures superior load-bearing capacity and stability. Perfect for data centers, clean rooms, and other technical spaces requiring precise floor leveling and structural integrity.
Key Features:
Wide height adjustment range: FFH100mm–FFH2000mm
Made from high-strength steel for durability and stability
Black powder epoxy coating for corrosion resistance
Adjustable M18 top rod for precise leveling
Reinforced square top and base plates for maximum load support
Compatible with stringer systems for added rigidity
Ideal for raised floor systems in critical environments
Suitable for data centers, server rooms, and clean rooms
Specifications:
Material: Steel
Color: Black
Painting: Powder Epoxy
Height: FFH100mm–FFH2000mm
Top Plate: 75mm × 75mm, 5mm thick
Top Rod: M18 with adjustment screw
Base Up Tube: Φ45mm, 2mm thick
Base Tube: Φ52mm, 2mm thick
Base Plate: 125mm × 125mm, 5mm thick
Use With: Stringer (if necessary)
Applicable Flooring: All kinds of raised floor
Applicable Places: Data Centers, Clean Rooms
