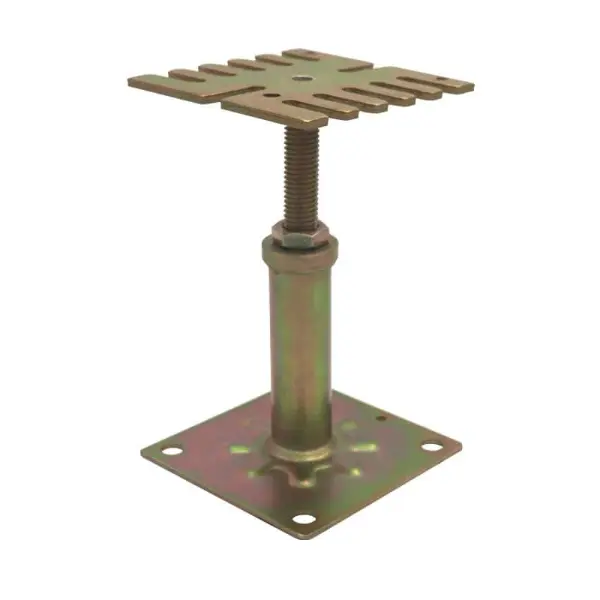

Heavy-duty steel pedestal designed to support data center cabinets, ensuring exceptional strength, stability, and long-term durability.
Description:
The Cabinet Pedestal is a robust and reliable support structure crafted specifically for data center cabinets. Built from high-quality steel and zinc-galvanized for maximum corrosion resistance, it ensures lasting performance in demanding environments. The adjustable height range (FFH200mm–FFH2000mm) allows flexible installation for various cabinet elevations. Its 120mm square top plate and 125mm square base plate deliver superior load-bearing capability, while the M18 adjustment screw ensures precise leveling. With its striking yellow finish for visibility and safety, the Cabinet Pedestal guarantees stability and efficiency in modern data center infrastructure.
Key Features:
Adjustable height from FFH200mm to FFH2000mm
Designed for secure data center cabinet support
Made from galvanized steel for corrosion protection
Strong square top and base plates for stability
Precision adjustment with M18 screw mechanism
Ideal for heavy-duty and high-load environments
Durable yellow finish for safety and visibility
Ensures consistent cabinet alignment and balance
Specifications:
Material: Steel
Usage: Data Center Cabinet Support
Color: Yellow
Painting: Zinc Galvanizing
Height: FFH200mm–FFH2000mm
Top Plate: □120mm, 5mm thick
Top Rod: M18 with Adjustment Screw
Base Tube: Φ32mm, 1.5mm thick
Base Plate: □125mm, 3mm thick
Applicable Place: Data Centers
